CNC Double-head Cutting Saw for UPVC Window

CNC Double-head Cutting Saw for UPVC Window

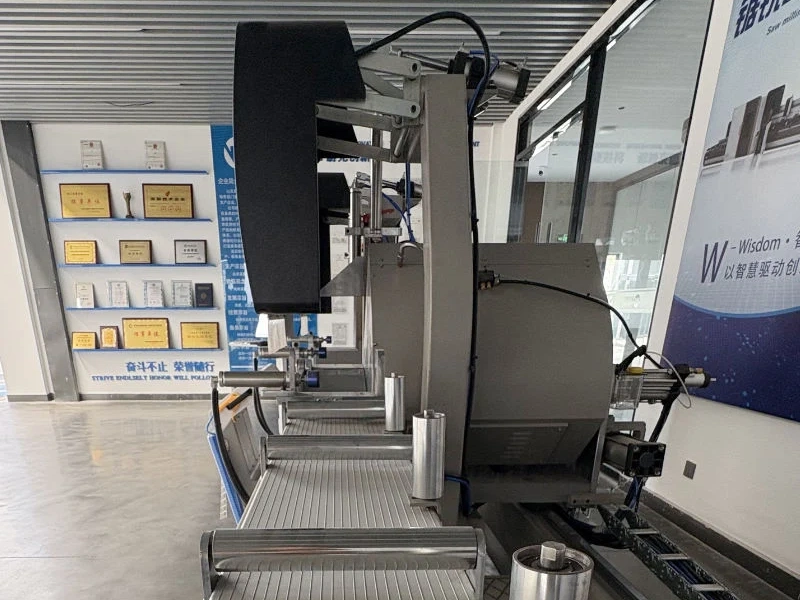

The CNC double-head cutting saw is engineered for high-precision processing of UPVC window and door profiles, combining synchronized servo motion with rigid structural support to maintain exact cutting geometry. Automated length positioning, controlled blade feed, and stable clamping ensure clean, repeatable cuts even on complex multi-chamber profiles, providing reliable performance for continuous fabrication lines

Cutting motor power：8kW
Cutting motor rotary speed：2800r/min
Air consumption：60L/min

Free Quote

Leave Message

Advantages &Features

01

The machine uses a carbide-tipped saw blade paired with a high-precision spindle, delivering stable rotation and consistently clean cutting surfaces across long production cycles.

02

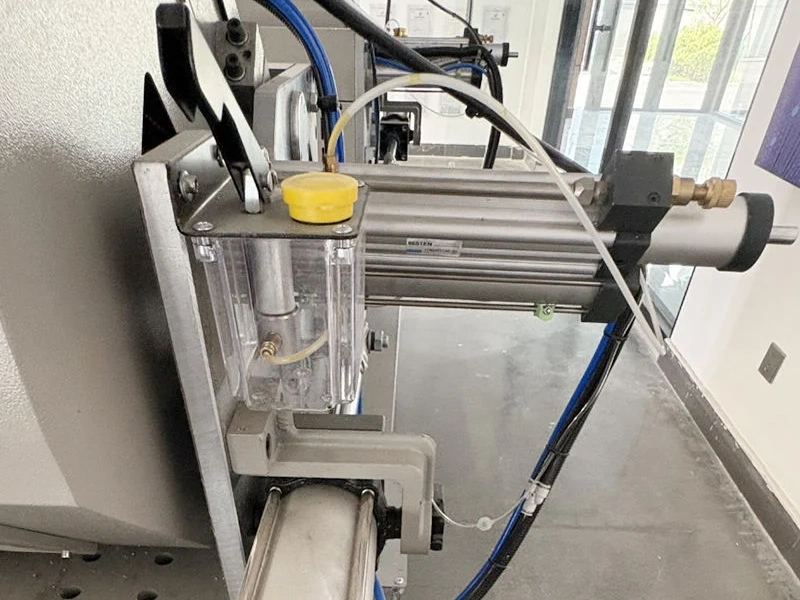

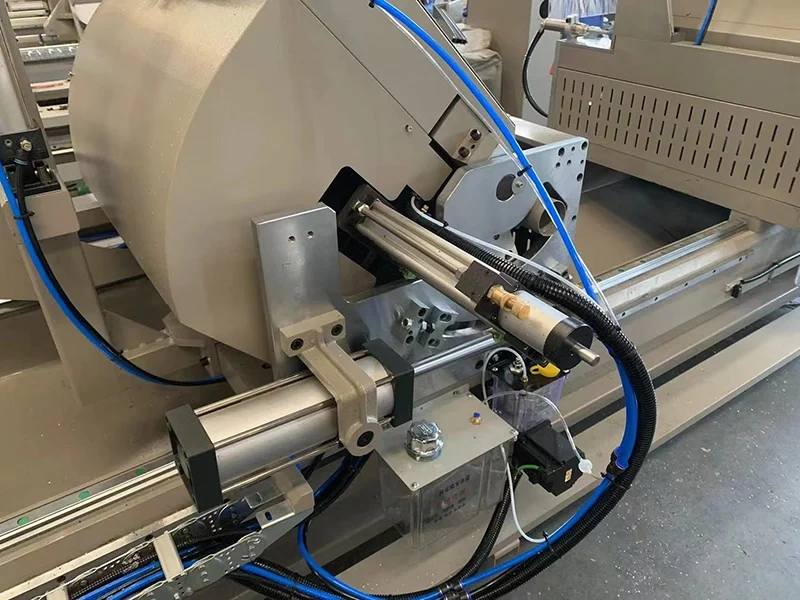

A gas-liquid damping feed system ensures uniform, well-controlled blade movement, preventing vibration and helping maintain dimensional accuracy on thin-wall UPVC profiles.

03

Linear-guide feed motion provides high rigidity and repeatable positioning accuracy, supporting reliable operation even under continuous, high-throughput workloads.

04

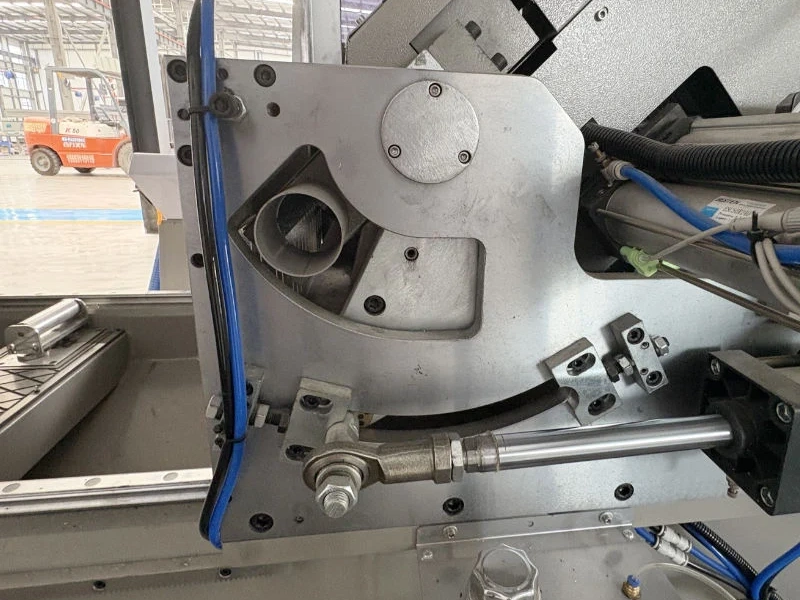

Both cutting heads can automatically switch between 45° and 90°, enabling precise angle cutting without manual adjustments and improving throughput in window frame production.

05

The fully automatic protective cover opens and closes with each cycle, keeping operators safe while allowing unobstructed access for blade changes and routine inspection.

06

A high-lead ball screw drives the right head feed system, providing accurate transmission, smooth travel, and reliable positioning for large-section or multi-cavity UPVC profiles.

Parameter

Product Parameter

Parameter	Parameter
Power supply	380V, 50Hz
Cutting motor power	5.8 kW
Cutting motor rotary speed	2800 r/min
Operation air pressure	0.5–0.8 MPa
Air consumption	60 L/min
Blade specification	Ø500 × Ø30 × 4.4 × Z120
Max. cutting length	4200 mm
Min. cutting length	450 mm
Cutting width	135 mm
Cutting height	90°: max 250 mm / 45°: max 200 mm
Max. cutting section	135 × 250 mm
Cutting angle	45°, 90°
Contour dimension	5260 × 1750 × 1990 mm

Main Components

Component	Brand	Origin
Control system	Honghai Automation	Jinan, China
PLC	Honghai Automation	Jinan, China
Servo motor	Honghai Automation	Jinan, China
Servo reducer	Honghai Automation	Jinan, China
Spindle motor	Zhongchuang	Guangdong, China
Main electrical parts	Chint	China
Linear guide	Hiwin	Taiwan, China
Solenoid valve	Airtac	Taiwan
Air tube	U-Shun	Taiwan
Oil–water separator	AW300-03	China
Cylinder	BD / Airtac	China
Diamond saw blade	Tengrui	Shijiazhuang, China

FAQ

Can the CNC Double-head Cutting Saw handle multi-chamber UPVC profiles without deformation?

Yes. The machine’s synchronized clamping and stable feed system are designed to support complex multi-chamber profiles, ensuring they remain rigid and undistorted during cutting.

How accurate is the length positioning during repetitive cutting?

With CNC control, linear guides, and a ball-screw feed mechanism, the machine maintains high repeatability across long runs, minimizing manual corrections and material waste.

What cutting angles are supported for UPVC window and door frames?

The two heads automatically adjust to 45° and 90°, which cover most frame and sash requirements in standard PVC window fabrication.

Does the CNC Double-head Cutting Saw require frequent blade changes?

The carbide saw blade and stable spindle rotation extend blade life, and most users only change blades based on production volume or after prolonged continuous operation.

What kind of maintenance does the feed system require?

Routine cleaning of the linear guides and regular lubrication of the ball screw keep the feed smooth and precise; no complex adjustments are normally required.

Is the cutting process safe for operators?

The machine integrates an automated protective cover, interlock protection, and stable damping feed, reducing exposure risk and ensuring safe operation during every cycle.
