Endless Diamond Wire Saw Cutting Machine – High Precision

An endless diamond wire saw is a precision cutting machine that uses a continuous loop of diamond-impregnated wire as its cutting tool . Unlike traditional reciprocating wire saws, the endless design enables the wire to move in one direction at high speeds (up to 80 m/s), resulting in smoother cuts, reduced vibration, and no reversal marks . It is specifically engineered for slicing hard, brittle materials with minimal kerf loss and superior surface finish .

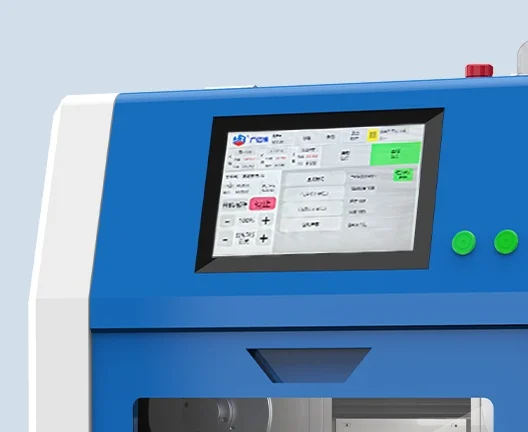

First, position the machine on a stable surface and connect power and coolant if required . Install the diamond wire loop correctly through all guide pulleys and apply proper tension . Secure the workpiece firmly to the worktable using clamps or fixtures . Set cutting parameters such as feed rate and wire speed on the control interface . Initiate the cutting cycle and monitor the process, ensuring adequate cooling and debris removal .

These machines cut a wide range of hard, brittle materials including ceramics (alumina, zirconia, silicon carbide), optical glass, quartz, sapphire, rare-earth magnets, silicon, graphite, and carbon composites . They can also cut metals like tungsten, steel, and aluminum . Essentially, they can cut any material softer than diamond, making them extremely versatile for research and production environments

The lifespan of endless diamond wire varies depending on the material being cut, wire diameter, and cutting parameters . Generally, most diamond wires last for several days of continuous use . The endless loop design eliminates reversal stress, enabling wires to last 3-5 times longer than traditional reciprocating wires—often providing over 200 hours of cutting time . Proper tension, cooling, and matching grit to material hardness significantly extend wire life .

Diamond wire saws cannot effectively cut ferrous metals such as iron, steel, and stainless steel . At high cutting temperatures, diamond undergoes graphitization—a chemical reaction where carbon dissolves into iron, rapidly dulling the cutting edge . Additionally, soft ductile metals and low-melting-point plastics tend to smear or gum up the diamond grit, making cutting impractical . For these materials, alternatives like cubic boron nitride or conventional abrasives are recommended.

Industrial endless diamond wire saw machines typically range from $20,000 to $50,000 or more depending on size, capacity, and features . Compact laboratory-scale models may start around $3,000-$10,000 , while large production systems with automated controls and multi-wire capabilities can exceed $60,000 . Price is influenced by work envelope size, cutting accuracy, control system sophistication, and included accessories such as coolant systems and fixturing options.

Select based on your specific application requirements . Evaluate maximum workpiece dimensions and weight capacity needed . Consider required cutting modes—whether straight slicing, contour cutting, or cylindrical coring is essential . Assess precision requirements: typical positioning accuracy ranges from ±0.01 mm to ±0.05 mm . For production environments, prioritize machines with automated controls, quick-change fixturing, and robust vibration-damping construction . Request sample cutting demonstrations to validate performance on your specific materials.

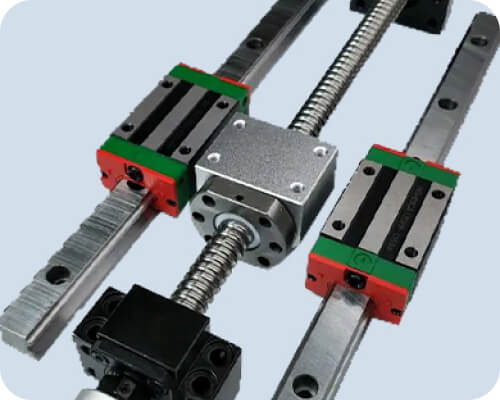

With proper maintenance, an endless diamond wire saw machine typically provides 10-15 years of reliable service . The mechanical lifespan depends on construction quality—machines with welded steel frames and precision ground components offer greater longevity . Critical factors affecting lifespan include daily cleaning to remove abrasive debris , regular calibration , proper lubrication of guide rails and ball screws , and timely replacement of worn pulleys and bearings . Following the manufacturer’s preventative maintenance schedule maximizes operational life.
