UPVC Profile Cutting Center

The UPVC Profile Cutting Center is engineered specifically for high-capacity window fabrication where dimensional precision and operational uptime are critical. By synchronizing automated material handling, laser-calibrated measurement, and high-torque servo-cutting. It effectively eliminates the variability inherent in manual processes, ensuring a standardized output across multi-shift operations.

Total Power Installed: 10–15 kW
Operating Air Pressure: 0.5–0.8 MPa
Spindle Velocity: 2800 rpm

Free Quote

Leave Message

Description

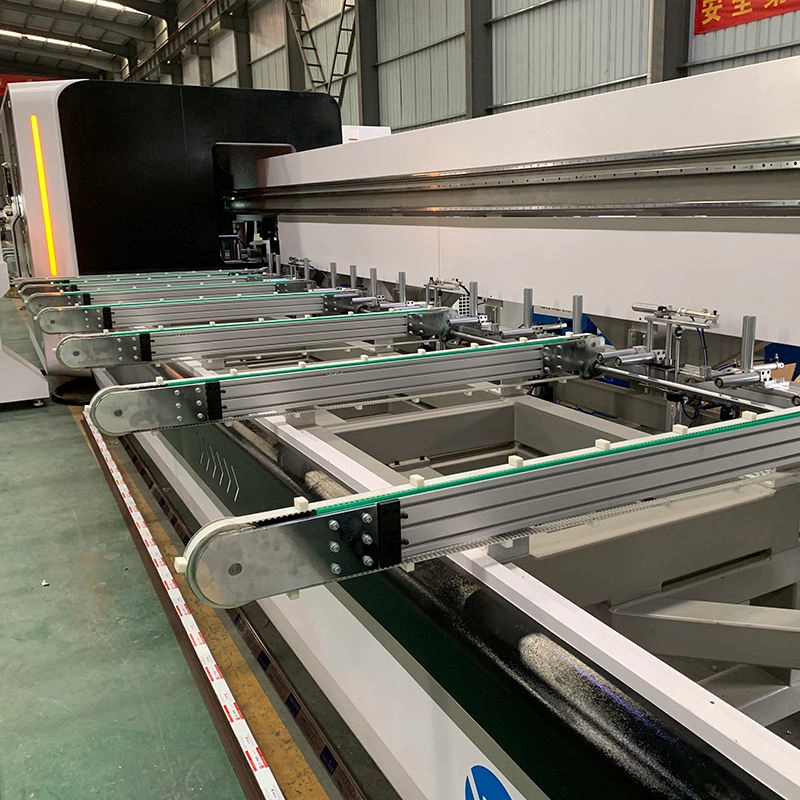

Feeding & Positioning System

The feeding and positioning system delivers each UPVC profile into the cutting zone with controlled alignment. Calibrated guides and sensing points manage entry orientation, ensuring every bar reaches the saw with a stable reference surface, reducing manual correction and maintaining workflow rhythm.

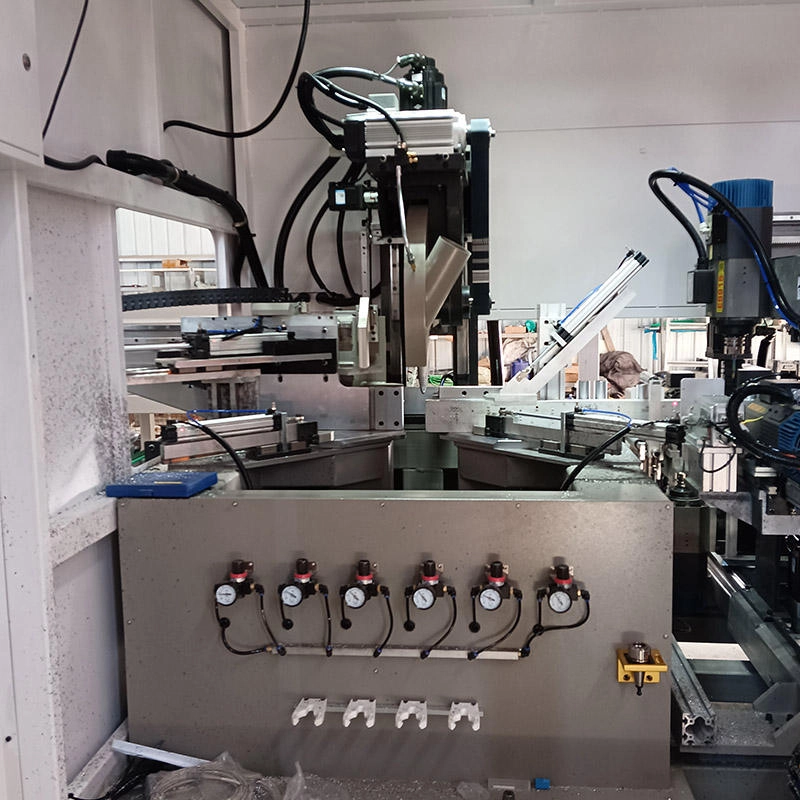

Clamping & Stabilization System

This module secures profiles through synchronized multi-point clamping that suppresses vibration and prevents thin-wall sections from deforming under load. By holding each profile rigidly throughout the entire cutting cycle, it preserves geometry and ensures clean, repeatable dimensional accuracy.

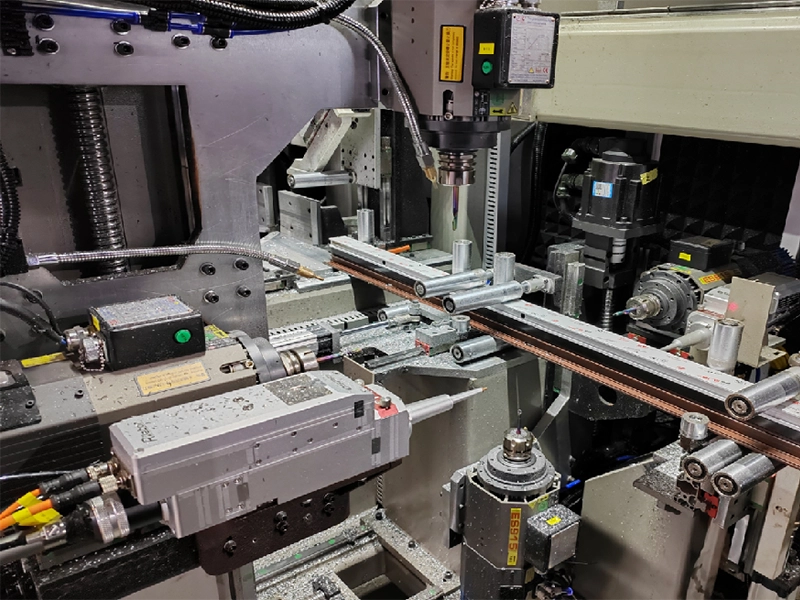

Servo Cutting & Sawing System

A servo-driven saw unit performs multi-angle cuts with precise blade positioning, controlled feed speed, and balanced torque output. The system maintains consistent cut quality across varying cross-sections, producing smooth edges and stable tolerances even in high-volume continuous production.

Control & Optimization System

The CNC control platform coordinates motion, profile data, cutting sequences, and real-time diagnostics. Its optimization tools manage job switching, length allocation, and error prevention, allowing operators to maintain production efficiency while keeping dimensional accuracy tightly regulated.

Advantages &Features

01

The center delivers fast and precise multi-angle cutting for UPVC profiles, ensuring stable quality and reducing material waste across different project requirements.

02

Integrated clamping and automated positioning improve accuracy, minimize manual errors, and keep long-profile cutting consistent during high-volume production.

03

Advanced servo control and optimized saw movement achieve smooth cutting surfaces, lowering post-processing work and enhancing overall production efficiency.

04

Automated feeding and sequential cutting reduce labor intensity, shorten cycle time, and maintain a continuous, reliable workflow for large-scale operations.

05

Rigid machine structure and vibration-controlled design help maintain long-term accuracy, extend blade service life, and ensure stable daily performance.

06

Compatible with various UPVC window and door profile sizes, offering flexible production capacity and supporting different factory layouts and product lines.

Parameter

Product Parameter

Parameter	Specification
Max Profile Length	6,000–6,500 mm (standard UPVC extrusion length)
Cutting Angles	45° / 90° standard, optional multi-angle configuration
Cutting Accuracy	Within ±0.5 mm over long runs
Dust Extraction	Dual ports Ø 120–150 mm, supports central dust system
Air Supply	0.6–0.8 MPa compressed air
Power Supply	380V / 50Hz, optional 220V / 60Hz
Machine Dimensions	Length 4.5–6.5 m, width 0.8–1.2 m, height 1.5–1.8 m

FAQ

How many UPVC profiles can this machine cut at the same time?

Depending on the specific profile dimensions, the heavy-duty manipulator can securely clamp and feed up to 8 standard profiles simultaneously, making it incredibly efficient for large-scale series production.

Will the UPVC Profile Cutting Center create a lot of static and dust during continuous operation?

No, the equipment features an integrated dust collection system designed specifically to extract UPVC chips and mitigate static electricity. This keeps the workspace clean, protects the internal servos, and prevents material scratching.

How does the UPVC Profile Cutting Center protect the structural integrity of thin-walled profiles?

To mitigate the risk of deformation, the UPVC Profile Cutting Center employs a multi-point stabilization matrix that distributes clamping force evenly across the profile’s load-bearing ribs. By synchronizing this pressure with controlled blade entry speeds, the UPVC Profile Cutting Center effectively neutralizes torsional stress, preventing the crushing or surface scuffing often seen in less advanced setups.

What happens to all the plastic chips and offcuts generated during high-speed sawing?

The cutting center is equipped with a dedicated residue and dust collection system. It automatically extracts UPVC chips during the cutting cycle, keeping the internal mechanical parts clean and extending the lifespan of the pneumatic components.

Can this UPVC Window Profile Cutting Center process V-notches and mullions?

Yes, it is highly versatile. In addition to standard 45° and 90° frame cuts, the CNC system can automatically execute precise V-notches and mullion cuts without requiring the operator to manually change fixtures or blades.

Can this equipment cut other materials besides UPVC, such as aluminum profiles?

While it is specifically optimized for the high-speed and clean cutting of UPVC frames, if your factory requires processing heavy-duty aluminum facades, we highly recommend exploring our dedicated aluminum cutting centers for the best results.
