Description
Advantages &Features
Parameter
Product Parameter
| Parameter | Specification |
| Machine Type | CNC Milling & Drilling Machine for uPVC Profiles |
| Number of Axes | 3 / 3+1 Axes (Optional Rotary Axis) |
| Processing Length | Up to 3000 mm (customizable) |
| Profile Width Range | 40 – 120 mm |
| Profile Height Range | 40 – 120 mm |
| Spindle Power | 3.0 – 4.5 kW |
| Spindle Speed | Up to 18,000 rpm |
| Workpiece Rotation | Automatic ±90° Rotation |
| Positioning Accuracy | ±0.05 mm |
| Repeatability | ±0.03 mm |
| Drive System | Servo Motor with Ball Screw |
| Guide System | High-Precision Linear Guide Rails |
| Air Pressure Requirement | 0.6 – 0.8 MPa |
| Power Supply | 380V / 50Hz (customizable) |
| Total Installed Power | Approx. 6 – 8 kW |
| Machine Dimensions (L×W×H) | Approx. 3500 × 1500 × 1800 mm |
| Machine Weight | Approx. 1200 – 1500 kg |
| Application | uPVC Window & Door Profile Milling, Drilling, Slotting |
FAQ
This machine supports drilling holes for locks, handles, hinges, drainage slots, and milling of channels and contours on uPVC window and door profiles.
The programmable rotary table enables ±90° flipping without manual handling, enabling multi-face machining in one setup and reducing cycle time.
No. Thanks to the advanced CNC system, the machine uses standard milling bits to trace and cut the required contour. This saves you thousands of dollars in custom tooling inventory when switching between different profile brands.
Yes. The twin-head configuration allows the operator to clamp the profile once, and the machine will mill both ends simultaneously. This ensures perfect overall length accuracy and immediately doubles your production speed.
Absolutely. The high-speed spindles and rigid linear guides provide the cutting power and mechanical stability needed to smoothly mill both tough aluminum alloys and standard UPVC mullions without vibration.

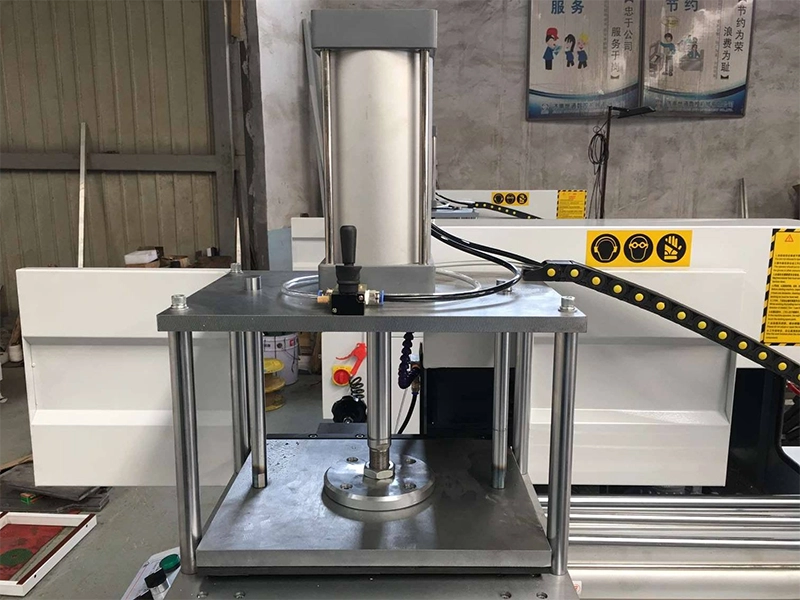

It utilizes a comprehensive pneumatic clamping system that applies strong, even pressure from both the top and the sides. This ensures the profile never shifts, twists, or vibrates during the aggressive high-speed cut.
