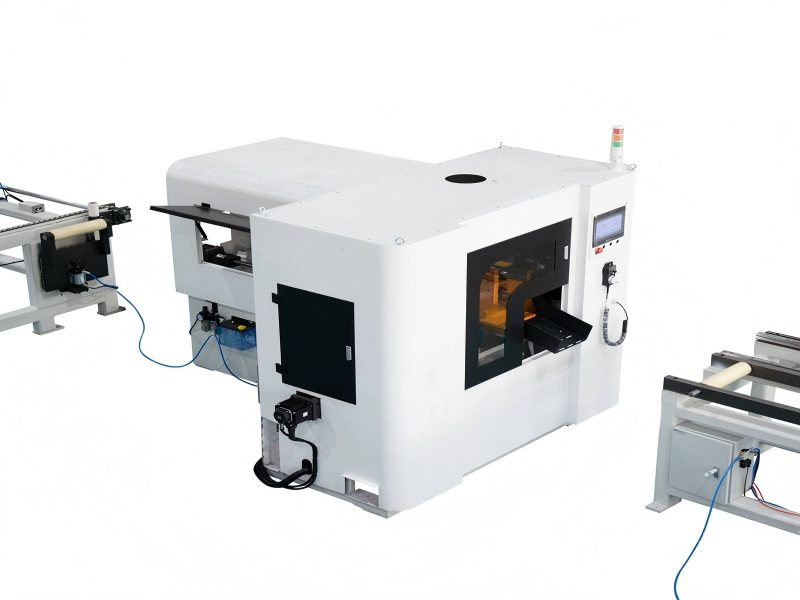

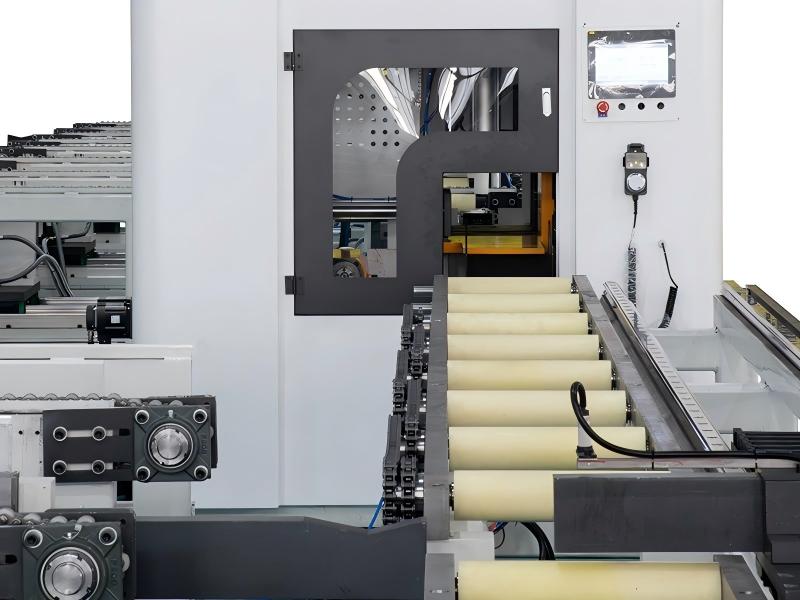

UPVC Window Cutting & Milling Production Line

The UPVC Window Cutting & Milling Production Line is a fully engineered machining solution designed to standardize and stabilize high-volume window fabrication. Built on a coordinated servo architecture, the line integrates profile loading, length calibration, multi-angle cutting, and multi-axis milling into a continuous-flow process. Each workstation operates under CNC control, ensuring profile geometry, alignment, and tooling engagement remain consistent across complex frame and sash configurations.

Saw Blade Diameter：450–500 mm
Air Consumption：300–550 L/min
Total Installed Power：12–18 kW

Free Quote

Leave Message

Description

Profile Feeding & Positioning System

This system manages automatic loading and servo-controlled profile alignment, maintaining stable feed motion for long UPVC extrusions. Reference sensors correct positional deviation in real time, ensuring each profile enters the cutting and milling stations with reliable datum accuracy, even at high throughput rates.

CNC Cutting System

Equipped with a rigid saw frame, carbide blades, and independent servo axes, the cutting system performs 90°, 45°, and compound cuts with consistent ±0.1 mm tolerance. Length calibration is handled through closed-loop measurement, ensuring frame and sash components meet downstream welding requirements without secondary adjustment.

CNC Milling & End-Processing System

This module integrates multi-axis CNC milling for drainage slots, reinforcement channels, and end-joint geometries. High-speed spindles maintain clean edge finishes on thin-wall UPVC profiles, while synchronized toolpaths ensure repeatable accuracy 4. Central Control & Output Handling System

Central Control & Output Handling System

Unified CNC control coordinates feeding, cutting, and milling while managing finished-part sorting, safety interlocks, and real-time monitoring, ensuring stable and continuous production flow.

Advantages &Features

01

Delivers stable ±0.1 mm cutting accuracy through servo-driven motion and rigid structural design, ensuring consistent frame and sash geometry.

02

Integrated cutting and milling workflow reduces manual handling, cutting operator demand by 30–50% while improving takt stability.

03

Intelligent clamping modules maintain profile stability during high-speed machining, minimizing vibration and improving edge quality.

04

Supports 90°, 45°, and compound angles with CNC calibration, ensuring reliable joints across diverse UPVC window systems.

05

Performs drainage slotting and end-milling in one pass, increasing throughput by 20–35% compared with standalone machines.

06

Reinforced machine frame, carbide tooling, and servo axes provide long-cycle stability for continuous factory-level production.

Parameter

Product Parameter

Parameter	Specification
Cutting Length Range	400–6500 mm (customizable)
Cutting Angle Range	90°, 45°, adjustable compound angles
Milling Operations	Drain slot milling, end milling, hardware channel milling
Servo Axes	3–5 axes depending on configuration
Feeding System	Automatic profile loading + servo-driven conveyor
Control System	Industrial CNC controller with centralized HMI
Cutting Blade Diameter	400–500 mm carbide blade (varies by model)
Air Pressure Requirement	0.5–0.8 MPa
Power Supply	380V / 50Hz or customer-specified
Total Installed Power	10–25 kW depending on line size
Machine Dimensions	Based on configuration (standard and extended lines available)

FAQ

What production challenges does the UPVC Window Cutting & Milling Production Line solve?

It addresses inconsistent cutting accuracy, unstable profile clamping, labor-intensive handling, and bottlenecks between cutting and milling. The line ensures standardized machining and a predictable takt time, which is essential for high-volume window manufacturing.

How does this production line improve machining accuracy?

The UPVC Window Cutting & Milling Production Line uses servo-controlled axes, fixed-reference calibration, and adaptive clamping to control tool engagement. This prevents profile deflection and maintains repeatable tolerances across long runs.

Can the production line handle different UPVC window system profiles?

Yes. The line accommodates various frame, sash, and mullion profiles. Tool paths and milling patterns can be changed via CNC programming without mechanical adjustments, supporting both standard and proprietary systems.

How long does it take for our workers to learn to operate this UPVC Window Cutting & Milling Production Line?

The learning curve is very low. After 2-3 days of systematic training by our engineers, standard operators can manage daily drawing imports, barcode scanning, and basic maintenance. Core layout and toolpath planning are handled automaticall

How much factory floor space do we need to install this production line?

As a fully automated system integrating loading, processing, and discharging modules, it typically requires about 15 to 20 meters of linear space. Our engineers will provide detailed CAD layout drawings before you confirm the order.

What is the daily production capacity of this UPVC Window Cutting & Milling Production Line?

Capacity depends on window complexity, but during a standard 8-hour shift, the line continuously processes hundreds of profiles, easily meeting the high-frequency delivery demands of large-scale window manufacturers.
