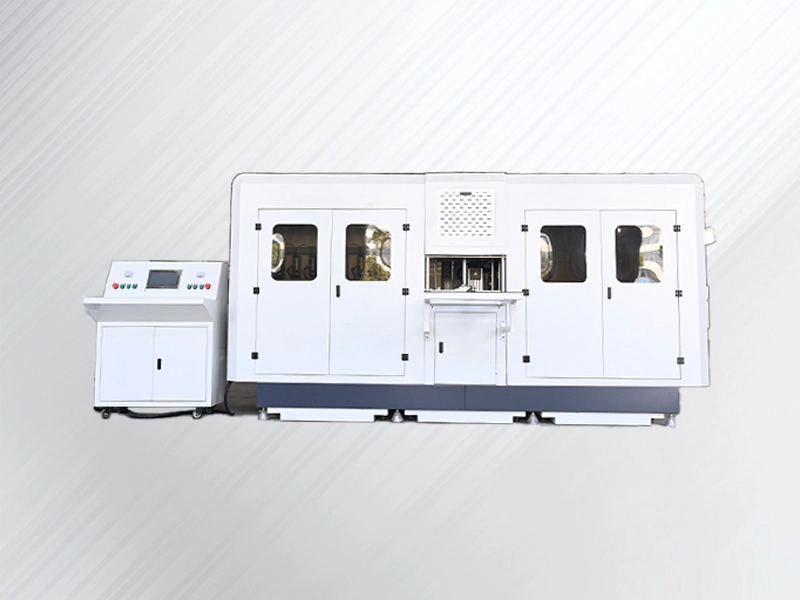

Aluminum Profile CNC End Milling Machine

The Aluminum Profile CNC End Milling Machine is specially designed for precision machining of aluminum profile end faces, ensuring accurate fitting between reinforced mullions and various profile sections. With fixed profile positioning and multi-directional adjustable milling tools, the machine delivers stable operation, high surface quality, and consistent machining results for aluminum door, window, and facade systems. Equipped with vector frequency control, adjustable feed speed, and fast tool retraction, the Aluminum Profile CNC End Milling Machine significantly shortens processing time while maintaining excellent machining accuracy, making it ideal for both customized and batch production.

Spindle Speed: 2800 r/min
Working Pressure: 0.5 – 0.8 MPa
Air Consumption: 200 L/min

Free Quote

Leave Message

Description

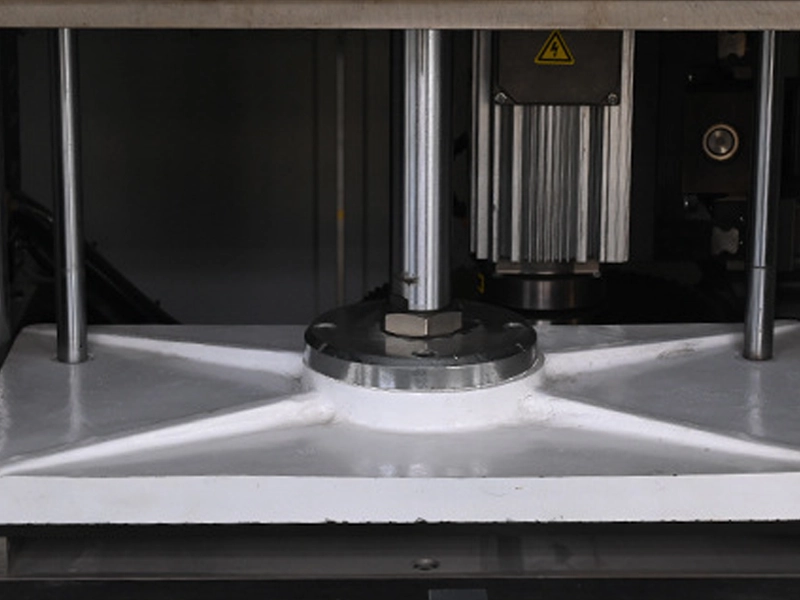

Fixed Profile with Moving Tool Structure

The Aluminum Profile CNC End Milling Machine securely fixes the aluminum profile while the milling cutter moves precisely, reducing vibration and ensuring stable, accurate end-face machining for various profile structures.

Adjustable Multi-Directional Milling Capability

With vertically and horizontally adjustable cutting tools, the Aluminum Profile CNC End Milling Machine can process aluminum profiles of different cross-sections, improving flexibility and minimizing setup time.

Variable Frequency Controlled Feed System

The machine adopts vector frequency speed control, allowing adjustable cutting feed speed and rapid tool return, optimizing machining efficiency and reducing unnecessary cycle time.

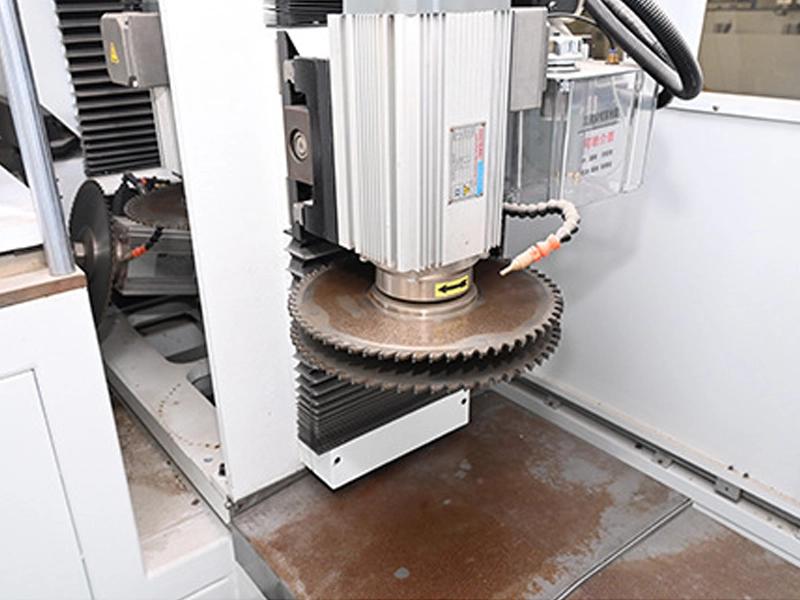

Large Diameter Cutter for High-Quality Milling

Featuring a large-diameter milling cutter and high-speed rotation, the Aluminum Profile CNC End Milling Machine delivers smooth, flat end surfaces that ensure precise assembly and strong structural connections.

Advantages &Features

01

By keeping the heavy aluminum profile strictly stationary and moving the cutting head, the machine guarantees absolute structural stability and perfect milling accuracy.

02

The fully adjustable cutting tools eliminate the costly requirement of buying a specific, custom-milled cutter set for every different architectural window series you fabricate.

03

An advanced vector variable frequency drive allows operators to easily dial in the perfect feed rate, preventing blade stalling and protecting the aluminum surface from chatter marks.

04

The rapid-return function of the cutting carriage significantly shortens the overall production cycle, exponentially increasing your factory’s daily output of finished mullions.

05

Massive, high-speed rotary cutters deliver a burr-free, exceptionally smooth end face, ensuring the mullion snaps seamlessly into the outer frame without any unsightly gaps.

06

Versatile horizontal and vertical tool adjustments allow your workshop to rapidly switch between processing standard aluminum and complex thermal break profiles in just minutes.

Parameter

Product Parameter

Item	Specification
Power Supply / Rated Power	380 V / 50 Hz / 3 × 3 kW
Spindle Speed	2800 r/min
Working Pressure	0.5 – 0.8 MPa
Air Consumption	200 L/min
Milling Cutter Specification	Ø300 × Ø32 × 6 mm
Worktable Size	520 × 480 mm
Worktable Feed Stroke	1100 mm
Tool Adjustment Stroke	Horizontal: 100 mm / Vertical: 300 mm
Number of Cutting Tools	4 pcs
Overall Dimensions (L × W × H)	4200 × 1800 × 2000 mm

Component Name	Model / Specification	Brand	Remarks / Origin
Control System	10-inch	Honghai Automation Technology	Jinan, China
PLC	HH-32T	Honghai Automation Technology	Jinan, China
Servo Motor	0.75 kW	Honghai Automation Technology	Jinan, China
Servo Gear Reducer	—	Honghai Automation Technology	Jinan, China
Spindle Motor	3 kW	Tianyang	Guangdong, China
Main Electrical Components	CDB6I Series	CHINT	China
Linear Guide Rail	Size 30	HIWIN	Taiwan, China
Solenoid Valve	—	AirTAC	Taiwan
Air Tube	PU Ø8	U-SHUN	Taiwan
Air Filter Regulator	AW300-03	AW300-03	China
Pneumatic Cylinder	—	BADI / AirTAC	China
Diamond Milling Cutter	Ø300	Tengrui	Shijiazhuang, China

FAQ

What types of aluminum profiles can the Aluminum Profile CNC End Milling Machine process?

The Aluminum Profile CNC End Milling Machine is suitable for various aluminum profile cross-sections used in doors, windows, curtain walls, and industrial aluminum systems.

How does this machine ensure consistent end-face accuracy?

By fixing the aluminum profile and allowing only the cutting tool to move, the Aluminum Profile CNC End Milling Machine minimizes vibration and maintains high machining stability.

Is the feed speed adjustable for different materials or profiles?

Yes, the Aluminum Profile CNC End Milling Machine uses vector frequency control, allowing operators to adjust feed speed according to profile thickness and cutting requirements.

How long does it take to change settings for different profile sizes?

Thanks to the adjustable tool system, the Aluminum Profile CNC End Milling Machine allows quick adjustments, significantly reducing setup and changeover time.

Milling different profiles usually requires buying custom cutters. Is that needed here?

No. The machine features fully adjustable cutting blades (up/down, left/right). You simply adjust the tool positions to match the specific step-contour of your new profile, saving your factory thousands of dollars in custom tooling costs.

Does the aluminum profile move or vibrate during the milling process?

No. The aluminum extrusion is securely pneumatically clamped to the fixed worktable. Only the heavy-duty cutting head moves along precision guide rails, entirely eliminating material vibration and cutting inaccuracy.
